Subsection Cubic Polynomials
Do the graphs of all cubic, or third-degree, polynomials have a basic shape in common? We can graph a few examples and find out. Unlike the basic parabola, the graph of \(y = x^3\) is always increasing. At the origin, however, it changes from concave down to concave up. A point where the graph changes concavity is called an inflection point.
Example 7.21.
Graph the cubic polynomial \(P(x) = x^3 - 4x\) and compare its graph with that of the basic cubic, \(y = x^3\text{.}\)
Solution.
The graph of the basic cubic is shown in figure (a) below. To help us understand the graph of the polynomial \(P(x) = x^3 - 4x\text{,}\) we will evaluate the function to make a table of values. We can do this by hand or use the Table feature on the graphing calculator.
| \(x\) |
\(-3\) |
\(-2\) |
\(-1\) |
\(0\) |
\(1\) |
\(2\) |
\(3\) |
| \(P(x)\) |
\(-15\) |
\(0\) |
\(3\) |
\(0\) |
\(-3\) |
\(0\) |
\(15\) |
The graph of \(P(x) = x^3 - 4x\) is shown in figure (b). It is not exactly the same shape as the basic cubic—it has two turning points—but it is similar, especially at the edges of the graphs.
Checkpoint 7.22. QuickCheck 1.
At an inflection point, a graph changes
direction.
concavity.
sign.
all of these.
Despite the differences in the central portions of the two graphs, they exhibit similar long-term behavior.
For very large and very small values of \(x\text{,}\) both graphs look like the power function \(y = x^3\text{.}\)
The \(y\)-values increase from \(-\infty\) toward zero in the third quadrant, and they increase from zero toward \(+\infty\) in the first quadrant. Or we might say that the graphs start at the lower left and extend to the upper right.
All cubic polynomials display this behavior when their lead coefficients (the coefficient of the \(x^3\) term) are positive.
Checkpoint 7.23. Practice 1.
-
Complete the table of values below for \(~C(x) = -x^3 - 2x^2 + 4x + 4\text{.}\)
| \(x\) |
\(-4\) |
\(-3\) |
\(-2\) |
\(-1\) |
\(0\) |
\(1\) |
\(2\) |
\(3\) |
\(4\) |
| \(y\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
Graph \(~y = C(x)\) in the standard window. Compare the graph to the graphs in the Example above: What similarities do you notice? What differences?
Solution.
| \(x\) |
\(-4\) |
\(-3\) |
\(-2\) |
\(-1\) |
\(0\) |
\(1\) |
\(2\) |
\(3\) |
\(4\) |
| \(y\) |
\(20\) |
\(1\) |
\(-4\) |
\(-1\) |
\(4\) |
\(5\) |
\(-4\) |
\(-29\) |
\(-76\) |
-
Both graphs have three \(x\)-intercepts, but the function in the Example above has long-term behavior like \(y = x^3\text{,}\) and this function has long-term behavior like \(y = -x^3\text{.}\)
Subsection Quartic Polynomials
Now let’s compare the long-term behavior of two quartic, or fourth-degree, polynomials.
Example 7.24.
Graph the polynomials \(~f(x) = x^4 - 10x^2 + 9~\) and \(~g(x) = x^4 + 2x^3\text{,}\) and compare.
Solution.
For each function we make a table of values.
| \(x\) |
\(-4\) |
\(-3\) |
\(-2\) |
\(-1\) |
\(0\) |
\(1\) |
\(2\) |
\(3\) |
\(4\) |
| \(f(x)\) |
\(105\) |
\(0\) |
\(-15\) |
\(0\) |
\(9\) |
\(0\) |
\(-15\) |
\(0\) |
\(105\) |
| \(g(x)\) |
\(128\) |
\(27\) |
\(0\) |
\(-1\) |
\(0\) |
\(3\) |
\(32\) |
\(135\) |
\(384\) |
The graphs are shown below. All the essential features of the graphs are shown in these viewing windows. The graphs continue forever in the directions indicated, without any additional twists or turns. You can see that the graph of \(f\) has three turning points, and the graph of \(g\) has one turning point.
As in
Example 7.21, both graphs have similar long-term behavior. The
\(y\)-values decrease from
\(-\infty\) toward zero as
\(x\) increases from
\(-\infty\text{,}\) and the
\(y\)-values increase toward
\(+\infty\) as
\(x\) increases to
\(+\infty\text{.}\) This long-term behavior is similar to that of the power function
\(y = x^4\text{.}\) Its graph also starts at the upper left and extends to the upper right.
Checkpoint 7.25. Practice 2.
-
Complete the following table of values for \(~Q(x) = -x^4 - x^3 - 6x^2 + 2\text{.}\)
| \(x\) |
\(-4\) |
\(-3\) |
\(-2\) |
\(-1\) |
\(0\) |
\(1\) |
\(2\) |
\(3\) |
\(4\) |
| \(y\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
\(\hphantom{000}\) |
Graph \(y = Q(x)\) in the window
\begin{equation*}
\begin{aligned}[t]
\text{Xmin} \amp = -5 \amp\amp \text{Xmax} = 5\\
\text{Ymin} \amp = -15 \amp\amp \text{Ymax} = 10
\end{aligned}
\end{equation*}
Compare the graph to the graphs in the previous Example: What similarities do you notice? What differences?
Solution.
| \(x\) |
\(-4\) |
\(-3\) |
\(-2\) |
\(-1\) |
\(0\) |
\(1\) |
\(2\) |
\(3\) |
\(4\) |
| \(y\) |
\(-286\) |
\(-106\) |
\(-30\) |
\(-4\) |
\(2\) |
\(-6\) |
\(-46\) |
\(-160\) |
\(-414\) |
-
The graphs all have long-term behavior like a fourth degree power function, \(y = ax^4\text{.}\) The long-term behavior of the graphs in the Example is the same as that of \(y = x^4\text{,}\) but the graph here has long-term behavior like \(y = -x^4\text{.}\)
In
Examples 7.21 and
7.24, we have seen polynomials of degree 3 and degree 4, whose graphs are illustrated in the next box. In the Homework Problems, you will consider more graphs to help you verify the following observations.
Long-Term Behavior of Polynomial Functions.
A polynomial of odd degree (with positive lead coefficient) has negative \(y\)-values for large negative \(x\) and positive \(y\)-values for large positive \(x\text{.}\)
A polynomial of even degree (with positive lead coefficient) has positive \(y\)-values for both large positive and large negative \(x\text{.}\)
Checkpoint 7.27. QuickCheck 2.
The long-term behavior of a polynomial of degree \(n\)
depends on the number of its zeros.
is the same as the behavior of \(y=kx^n\text{.}\)
may have a horizontal asymptote.
cannot be determined without a graph.
Subsection \(x\)-Intercepts and the Factor Theorem
In
Chapter 6, we saw that the x-intercepts of a quadratic polynomial,
\(f(x) = ax^2 + bx + c\text{,}\) occur at values of
\(x\) for which
\(f(x) = 0\text{,}\) that is, at the real-valued solutions of the equation
\(ax^2 + bx + c = 0\text{.}\) The same holds true for polynomials of higher degree.
Solutions of the equation
\(P(x) = 0\) are called
zeros of the polynomial
\(P\text{.}\) In
Example 7.21, we graphed the cubic polynomial
\(P(x) = x^3 - 4x\text{.}\) Its
\(x\)-intercepts are the solutions of the equation
\(x^3 - 4x = 0\text{,}\) which we can solve by factoring the polynomial
\(P(x)\text{.}\)
\begin{align*}
x^3 - 4x \amp= 0\\
x(x - 2)(x + 2) \amp= 0
\end{align*}
The zeros of \(P\) are \(0\text{,}\) \(2\text{,}\) and \(-2\text{.}\) Each zero of \(P\) corresponds to a factor of \(P(x)\text{.}\) This result suggests the following theorem, which holds for any polynomial \(P\text{.}\)
Factor Theorem.
Let \(P(x)\) be a polynomial with real number coefficients. Then \((x - a)\) is a factor of \(P(x)\) if and only if \(P(a) = 0\text{.}\)
Checkpoint 7.28. QuickCheck 3.
Without graphing, how can you tell that the polynomial \(~p(x)=(x^2+1)(x^2+2)~\) has no \(x\)-intercepts?
It is quartic.
All of its coefficients are positive.
It cannot be factored further.
It has no turning points.
The factor theorem follows from the division algorithm for polynomials. (See the
Polynomials and Factoring section in Appendix Algebra Skills Refresher to review polynomial division.) We will consider both of these results in more detail in the Homework problems.
Checkpoint 7.29. QuickCheck 4.
The graph of which type of polynomial must have an \(x\)-intercept?
Quadratic
Cubic
Quartic
None of these
Because a polynomial function \(P\) of degree \(n\) can have at most \(n\) linear factors of the form \((x - a)\text{,}\) it follows that \(P\) can have at most \(n\) distinct zeros.
Another way of saying this is that if
\(P(x)\) is a polynomial of
\(n\)th degree, the equation
\(P(x) = 0\) can have at most
\(n\) distinct solutions, some of which may be complex numbers. (We consider complex numbers in
Section 7.3.)
Because only real-valued solutions appear on the graph as \(x\)-intercepts, we have the following corollary to the factor theorem.
\(x\)-Intercepts of Polynomials.
A polynomial of degree \(n\) can have at most \(n\) \(x\)-intercepts.
If some of the zeros of \(P\) are complex numbers, they will not appear on the graph, so a polynomial of degree \(n\) may have fewer than \(n\) \(x\)-intercepts.
Example 7.30.
Find the real-valued zeros of each of the following polynomials, and list the \(x\)-intercepts of its graph.
\(\displaystyle f(x) = x^3 + 6x^2 + 9x\)
\(\displaystyle g(x) = x^4 - 3x^2 - 4\)
Solution.
Factor the polynomial to obtain
\begin{align*}
f(x) \amp= x(x^2 + 6x + 9)\\
\amp= x(x + 3)(x + 3)
\end{align*}
By the factor theorem, the zeros of \(f\) are \(0\text{,}\) \(-3\text{,}\) and \(-3\text{.}\) (We say that \(f\) has a zero of multiplicity two at \(-3\text{.}\)) Because all of these are real numbers, all will appear as \(x\)-intercepts on the graph. Thus, the \(x\)-intercepts occur at \((0, 0)\) and at \((-3, 0)\text{.}\)
-
Factor the polynomial to obtain
\begin{align*}
g(x) \amp= (x^2 - 4)(x^2 + 1)\\
\amp= (x - 2)(x + 2)(x^2 + 1)
\end{align*}
Because \(x^2 + 1\) cannot be factored in real numbers, the graph has only two \(x\)-intercepts, at \((-2, 0)\) and \((2, 0)\text{.}\) The graphs of both polynomials are shown below.
Checkpoint 7.31. Practice 3.
Find the real-valued zeros of \(~P(x) = -x^4 + x^3 + 2x^2~\) by factoring.
Sketch a rough graph of \(y = P(x)\) by hand.
Solution.
\(\displaystyle -1, 0, 2\)
Checkpoint 7.32. Pause and Reflect.
How may the graph of a polynomial differ from the graph of a power function of the same degree?
Subsection Zeros of Multiplicity Two or Three
The appearance of the graph near an \(x\)-intercept is determined by the multiplicity of the zero there.
Both real zeros of the polynomial
\(g(x) = x^4 - 3x^2 - 4\) in
Example 7.30b are of multiplicity one, and the graph
crosses the
\(x\)-axis at each intercept.
The polynomial
\(f(x) = x^3 + 6x^2 + 9x\) in
Example 7.30a has a zero of multiplicity two at
\(x = -3\text{.}\) The graph of
\(f\) just
touches the
\(x\)-axis and then reverses direction without crossing the axis.
To understand what happens in general, compare the graphs of the three polynomials below.
In figure (a), \(L(x) = x - 2\) has a zero of multiplicity one at \(x = 2\text{,}\) and its graph crosses the \(x\)-axis there.
In figure (b), \(Q(x) = (x - 2)^2\) has a zero of multiplicity two at \(x = 2\text{,}\) and its graph touches the \(x\)-axis there but changes direction without crossing.
In figure (c), \(C(x) = (x - 2)^3\) has a zero of multiplicity three at \(x = 2\text{.}\) In this case, the graph makes an S-shaped curve at the intercept, like the graph of \(y = x^3\text{.}\)
Near its \(x\)-intercepts, the graph of a polynomial takes one of the characteristic shapes illustrated above.
Example 7.34.
Graph the polynomial
\begin{equation*}
f(x) = (x + 2)^3(x - 1)(x - 3)^2
\end{equation*}
Solution.
The polynomial has degree six, an even number, so its graph starts at the upper left and extends to the upper right. Its \(y\)-intercept is
\begin{equation*}
f(0) = (2)^3(-1)(-3)^2 = -72
\end{equation*}
\(f\) has a zero of multiplicity three at \(x = -2\text{,}\) a zero of multiplicity one at \(x = 1\text{,}\) and a zero of multiplicity two at \(x = 3\text{.}\) The graph has an S-shaped curve at \(x = -2\text{,}\) crosses the \(x\)-axis at \(x = 1\text{,}\) touches the \(x\)-axis at \(x = 3\text{,}\) and then changes direction, as shown below.
Checkpoint 7.35. Practice 4.
Sketch a rough graph of \(~f(x) = (x + 3)(x - 1)^2~\) by hand. Label the \(x\)- and \(y\)-intercepts.
Solution.
\(f\) has degree three with a positive coefficient of \(x^3\text{,}\) so its graph starts at the lower left and extends to the upper right. The graph crosses the \(x\)-axis at \(x=-3\text{,}\) touches the \(x\)-axis at the double zero \(x=1\) and then changes direction, as shown in the graph below.
Checkpoint 7.36. Pause and Reflect.
Explain how the multiplicity of a zero affects the shape of the graph near that zero.
Exercises Homework 7.2
Exercise Group.
In Problems 1–8, use your calculator to graph each cubic polynomial.
Describe the long-term behavior of each graph. How does this behavior compare to that of the basic cubic? How does the sign of the lead coefficient affect the graph?
How many \(x\)-intercepts does each graph have? How many turning points? How many inflection points?
1.
\(y = x^3 + 4\)
2.
\(y = x^3 - 8\)
3.
\(y = -2 - 0.05x^3\)
4.
\(y = 5 - 0.02x^3\)
5.
\(y = x^3 - 3x\)
6.
\(y = 9x - x^3\)
7.
\(y = x^3 + 5x^2 - 4x - 20\)
8.
\(y = -x^3 - 2x^2 + 5x + 6\)
Exercise Group.
For Problems 9–10, use a graphing utility to graph each cubic polynomial. Which graphs are the same?
9.
\(\displaystyle y=x^3-2 \)
\(\displaystyle y=(x-2)^3 \)
\(\displaystyle y= x^3-6x^2+12x-8 \)
10.
\(\displaystyle y = x^3 + 3\)
\(\displaystyle y = (x + 3)^3\)
\(\displaystyle y = x^3 + 9x^2+27x+27\)
Exercise Group.
In Problems 11–18, use your calculator to graph each quartic polynomial.
Describe the long-term behavior of each graph. How does this behavior compare to that of the basic quartic? How does the sign of the lead coefficient affect the graph?
How many \(x\)-intercepts does each graph have? How many turning points? How many inflection points?
11.
\(y = 0.5x^4 - 4\)
12.
\(y = 0.3x^4 + 1\)
13.
\(y = -x^4 + 6x^2 - 10\)
14.
\(y = x^4 - 8x^2 - 8\)
15.
\(y = x^4 - 3x^3\)
16.
\(y = -x^4 - 4x^3\)
17.
\(y = -x^4 - x^3 - 2\)
18.
\(y = x^4 + 2x^3 + 4x^2 + 10\)
19.
From your answers to Problems 1–8, what you can conclude about the graphs of cubic polynomials? Consider the long-term behavior, \(x\)-intercepts, turning points, and inflection points.
20.
From your answers to Problems 11–18, what you can conclude about the graphs of quartic polynomials? Consider the long-term behavior, \(x\)-intercepts, turning points, and inflection points.
Exercise Group.
For Problems 21–28,
Use your calculator to graph each polynomial and locate the \(x\)-intercepts. Set \(\text{Xmin} =-4.7\text{,}\) \(\text{Xmax} = 4.7\text{,}\) and adjust \(\text{Ymin}\) and \(\text{Ymax}\) to get a good graph.
Write the polynomial in factored form.
Expand the factored form of the polynomial (that is, multiply the factors together). Do you get the original polynomial?
21.
\(P(x) = x^3 - 7x - 6\)
22.
\(Q(x) = x^3 + 3x^2 - x - 3\)
23.
\(R(x) = x^4 - x^3 - 4x^2 + 4x\)
24.
\(S(x) = x^4 + 3x^3 - x^2 - 3x\)
25.
\(p(x) = x^3 - 3x^2 - 6x + 8\)
26.
\(q(x) = x^3 + 6x^2 - x - 30\)
27.
\(r (x) = x^4 - x^3 - 10x^2 + 4x + 24\)
28.
\(s(x) = x^4 - x^3 - 12x^2 - 4x + 16\)
Exercise Group.
For Problems 29–36, sketch a rough graph of each polynomial function by hand, paying attention to the shape of the graph near each \(x\)-intercept. Check by graphing with a calculator.
29.
\(q(x) = (x + 4)(x + 1)(x - 1)\)
30.
\(p(x) = x(x + 2)(x + 4)\)
31.
\(G(x) = (x - 2)^2(x + 2)^2\)
32.
\(F(x) = (x - 1)^2 (x - 3)^2\)
33.
\(h(x) = x^3(x + 2)(x - 2)\)
34.
\(H(x) = (x + 1)^3(x - 2)^2\)
35.
\(P(x) = (x + 4)^2(x + 1)^2(x - 1)^2\)
36.
\(Q(x) = x^2(x - 5)(x - 1)^2(x + 2)\)
Exercise Group.
For Problems 37–46,
Find the zeros of each polynomial by factoring.
Sketch a rough graph by hand.
37.
\(P(x) = x^4 + 4x^2\)
38.
\(P(x) = x^3 + 3x\)
39.
\(f (x) = x^4 + 4x^3 + 4x^2\)
40.
\(g(x) = x^4 + 4x^3 + 3x^2\)
41.
\(g(x) = 4x - x^3\)
42.
\(f(x) = 8 x -x^4\)
43.
\(K(x) = x^4 - 10x^2 + 16\)
44.
\(m(x) = x^4 - 15x^2 + 36\)
45.
\(r (x) = (x^2 - 1)(x + 3)^2\)
46.
\(s(x) = (x^2 - 9)(x - 1)^2\)
Exercise Group.

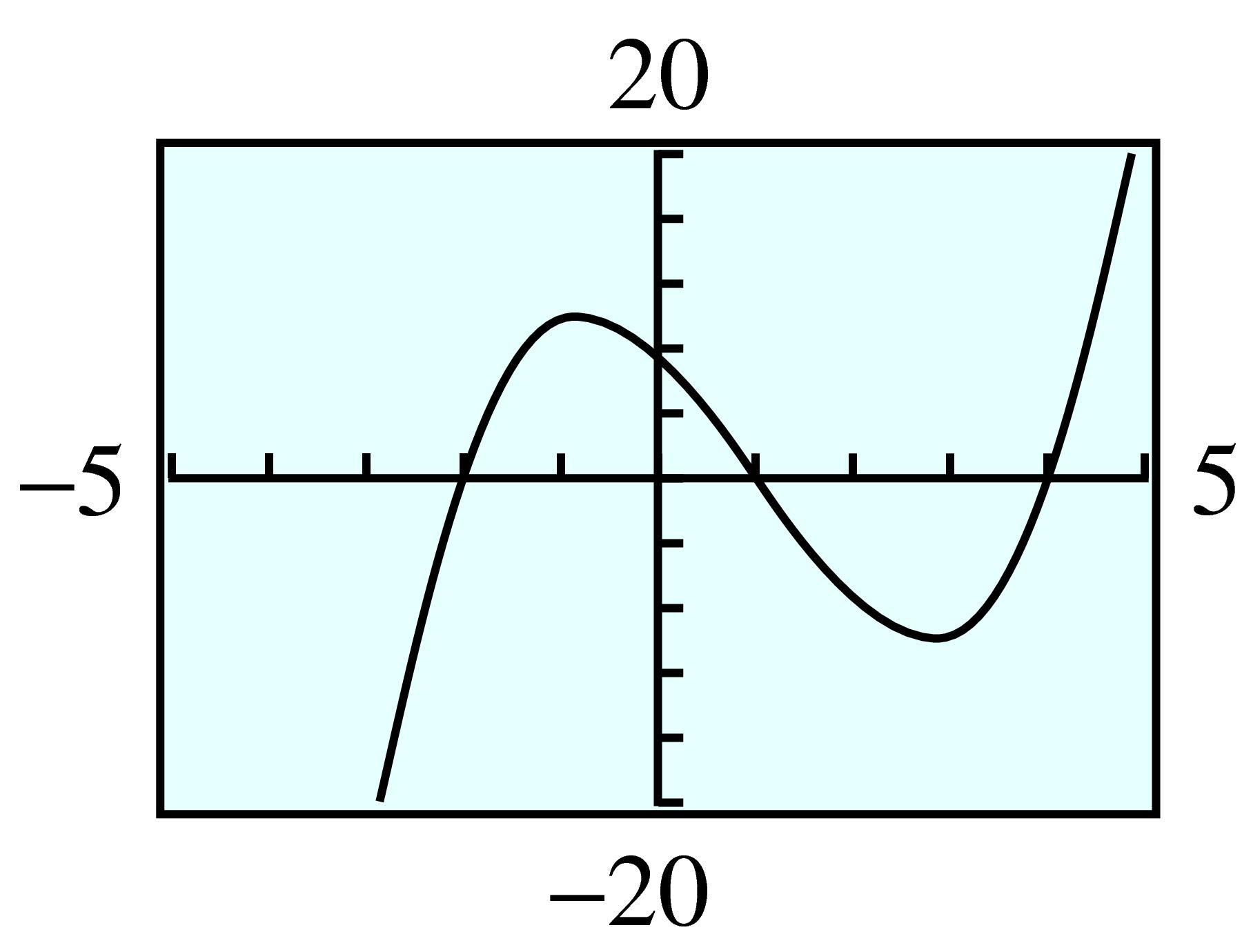

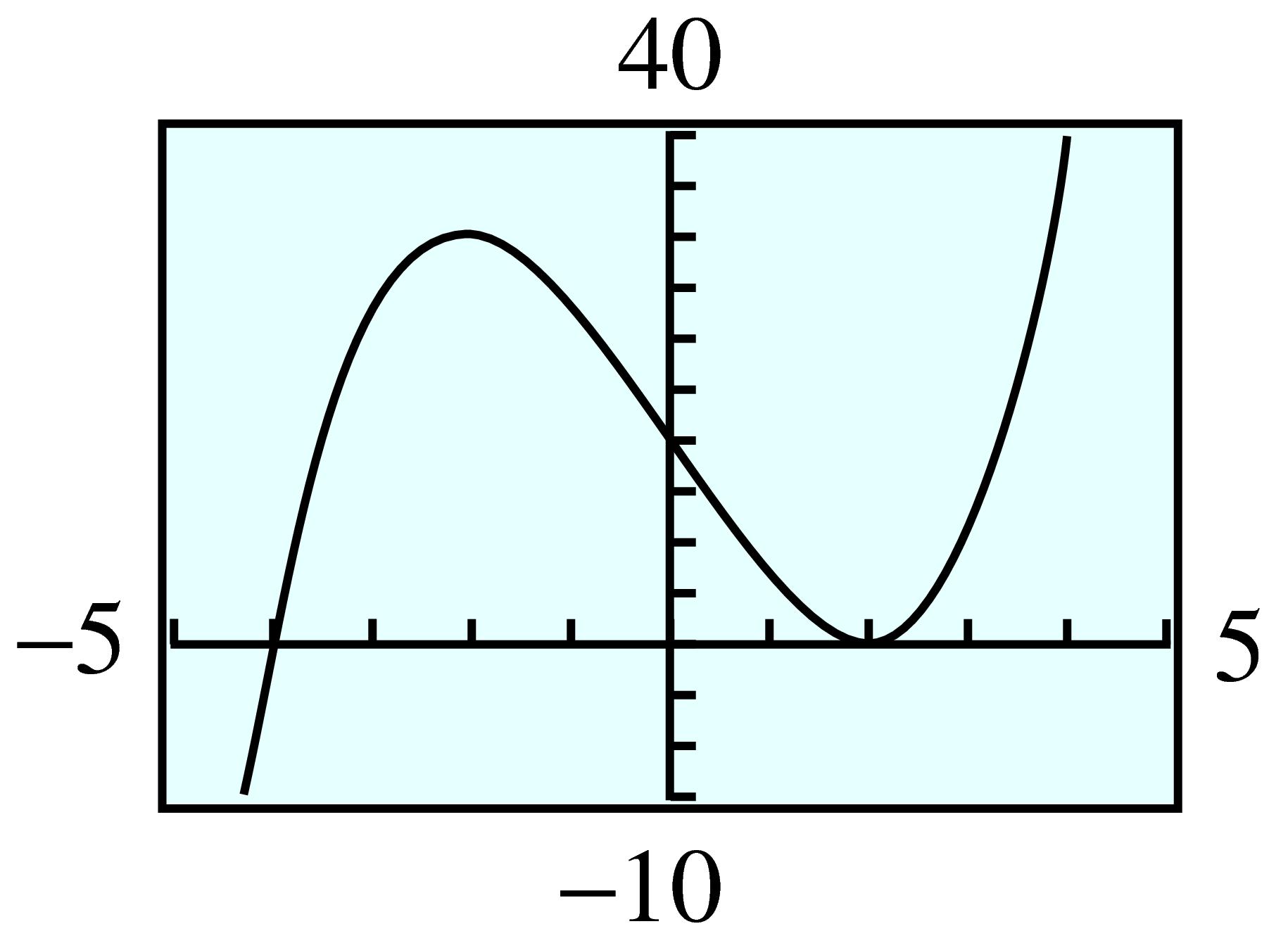

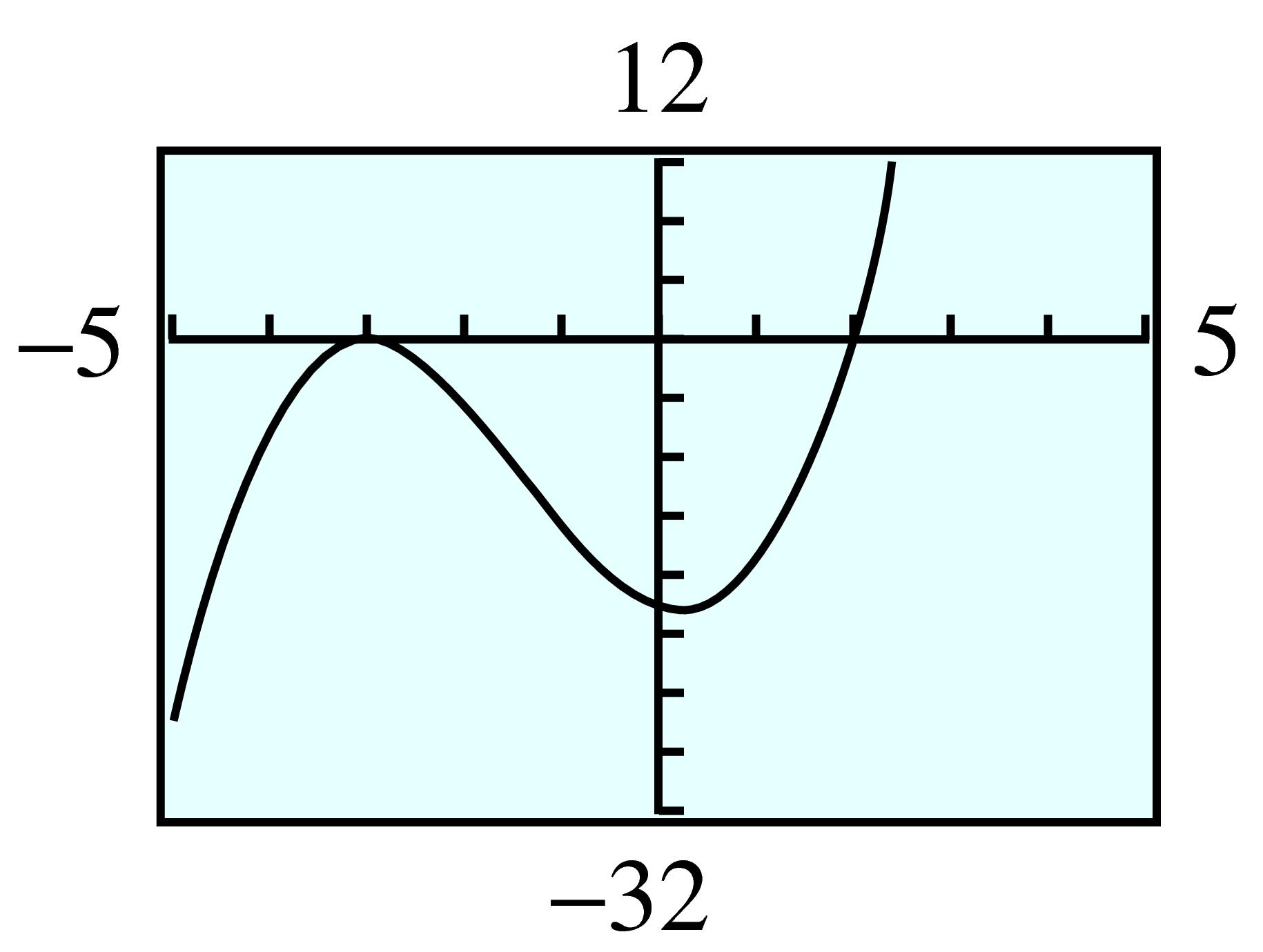

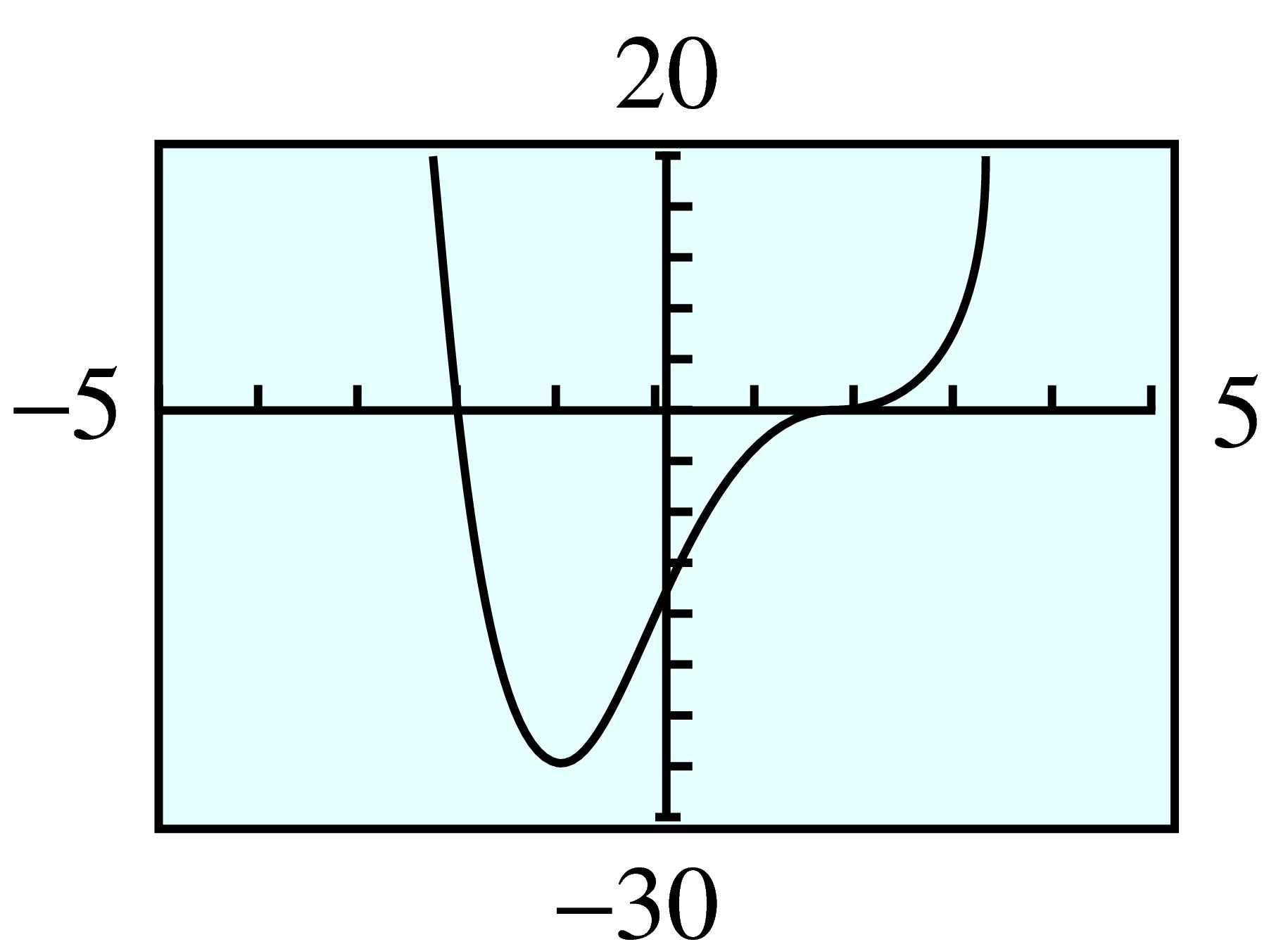

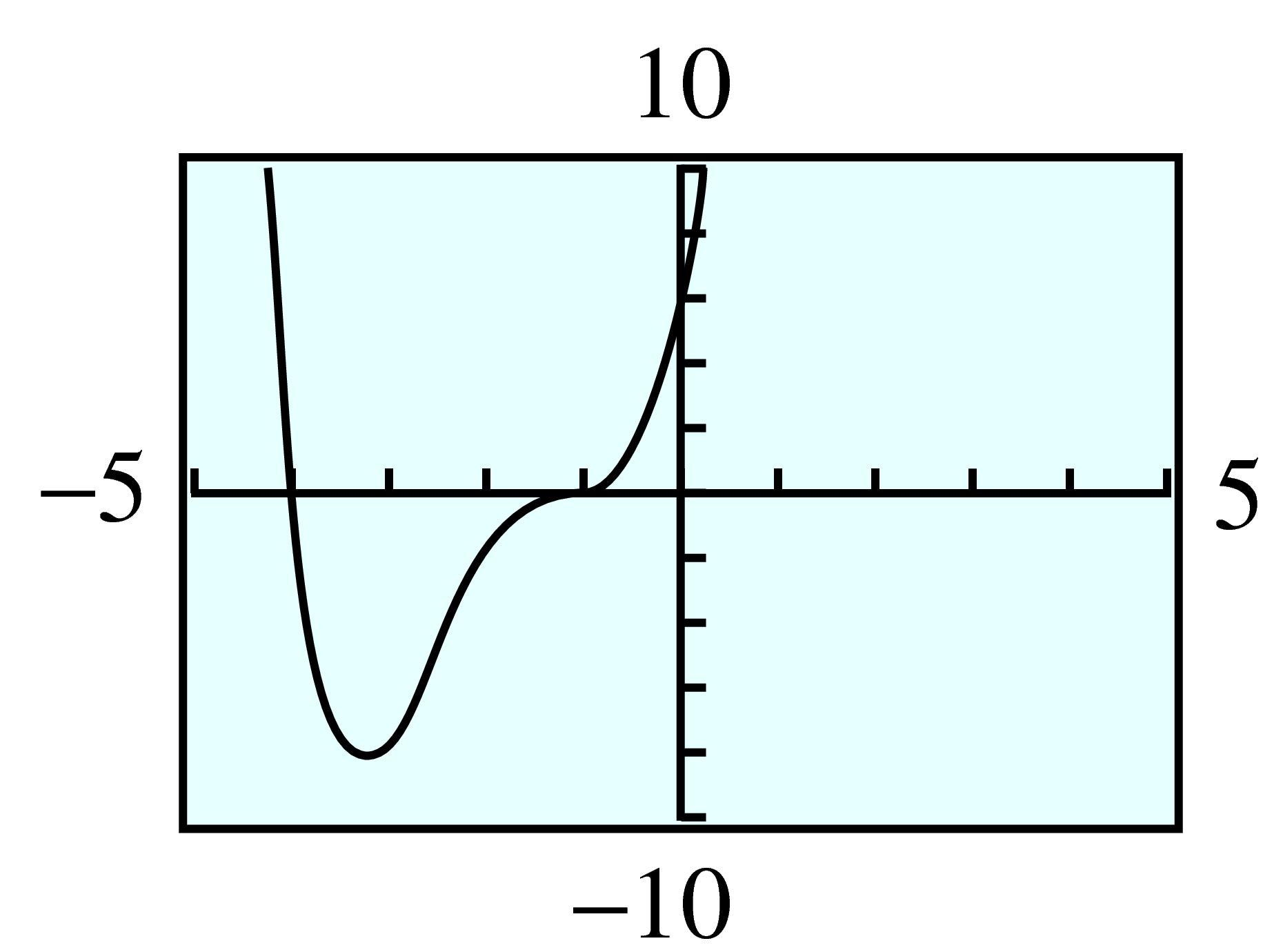

For Problems 47–52, find a possible equation for the polynomial whose graph is shown.
Exercise Group.
For Problems 53–56, write the formula for each function in parts (a) through (d) and graph with a calculator. Describe how the graph differs from the graph of \(y = f(x)\text{.}\)
53.
\(f (x) = x^3 - 4x\)
\(\displaystyle y=f(x)+3 \)
\(\displaystyle y=f(x)-5 \)
\(\displaystyle y=f(x-2) \)
\(\displaystyle y=f(x+3) \)
54.
\(f (x) = x^3 -x^2 +x -1\)
\(\displaystyle y=f(x)+4 \)
\(\displaystyle y=f(x)-4 \)
\(\displaystyle y=f(x-3) \)
\(\displaystyle y=f(x+5) \)
55.
\(f (x) = x^4 - 4x^2\)
\(\displaystyle y=f(x)+6 \)
\(\displaystyle y=f(x)-2 \)
\(\displaystyle y=f(x-1) \)
\(\displaystyle y=f(x+2) \)
56.
\(f (x) = x^4 + 3x^3\)
\(\displaystyle y=f(x)+5 \)
\(\displaystyle y=f(x)-3 \)
\(\displaystyle y=f(x-2) \)
\(\displaystyle y=f(x+1) \)
Exercise Group.
Division Algorithm for Polynomials.
If \(f(x) \) and \(g(x)\) are nonconstant polynomials with real coefficients, then there exist unique polynomials \(q(x)\) and \(r (x)\) such that
\begin{equation*}
f (x) = g(x)q(x) + r(x),
\end{equation*}
where \(\text{deg } r(x) \lt \text{deg }g(x)\text{.}\)
In Problems 57–60, use polynomial division to divide
\(f(x) \) by
\(g(x) \text{,}\) and hence find the quotient,
\(q(x) \text{,}\) and remainder,
\(r(x) \text{.}\) (See Algebra Skills Refresher
Section A.7 to review polynomial division.)
57.
\(f (x) = 2x^3 - 2x^2 - 19x - 11, ~g(x) = x - 3\)
58.
\(f (x) = 3x^3 + 12x^2 - 13x - 32, ~g(x) = x + 4\)
59.
\(f (x) = x^5 + 2x^4 - 7x^3 - 12x^2 + 5, ~g(x) = x^2 + 2x - 1\)
60.
\(f (x) = x^5 - 4x^4 + 11x^3 - 12x^2 + 5x + 2, ~g(x) = x^2 - x + 3\)
61.
The remainder theorem states: If \(P(x)\) is a polynomial and \(a\) is any real number, there is a unique polynomial \(Q(x)\) such that
\begin{equation*}
P(x) = (x - a)Q(x) + P(a)
\end{equation*}
Follow the steps below to prove the remainder theorem
State the division algorithm applied to the polynomials \(P(x)\) and \(x-a\text{.}\)
What must be the degree of \(r(x) \) in this case?
Evaluate your expression from part (a) at \(x = a\text{.}\) What does this tell you about the remainder, \(r (x)\text{?}\)
62.
Verify the remainder theorem for the following:
\(\displaystyle P(x) = x^3 - 4x^2 + 2x - 1, a = 2\)
\(\displaystyle P(x) = 3x^2 + x - 5, ~a = -3\)
63.
Use the remainder theorem to prove the factor theorem, stated earlier in this section. You will need to justify two statements:
If \(P(a) = 0\text{,}\) show that \(x - a\) is a factor of \(P(x) \text{.}\)
If \(x-a\) is a factor of \(P(x)\text{,}\) show that \(P(a)=0 \text{.}\)
64.
Verify the factor theorem for the following:
\(\displaystyle P(x) = x^4 - 4x^3 - 11x^2 + 3x + 2, ~a = -2\)
\(\displaystyle P(x) = x^3 + 2x^2 - 31x - 20, ~a = 5\)
Exercise Group.
For Problems 65–68,
Verify that the given value is a zero of the polynomial.
Find the other zeros. (Hint: Use polynomial division to write
\begin{equation*}
P(x) = (x - a)Q(x)
\end{equation*}
then factor \(Q(x).\))
65.
\(P(x) = x^3 - 2x^2 + 1\text{;}\) \(a = 1\)
66.
\(P(x) = x^3 + 2x^2 - 1\text{;}\) \(a = -1\)
67.
\(P(x) = x^4 - 3x^3 - 10x^2 + 24x\text{;}\) \(a = -3\)
68.
\(P(x) = x^4 + 5x^3 - x^2 - 5x\text{;}\) \(a = -5\)
Exercise Group.
In Problems 69–70, we use polynomials to approximate other functions.
69.
Graph the functions \(f(x) = e^x\) and
\begin{equation*}
p(x) = 1 + x + \frac{1}{2}x^2+\frac{1}{6}x^3
\end{equation*}
in the standard window. For what values of \(x\) does it appear that \(p(x)\) would be a good approximation for \(f(x)\text{?}\)
-
Change the window settings to
\begin{align*}
{\text{Xmin}} \amp = -4.7 \amp\amp {\text{Xmax}} = 4.7\\
{\text{Ymin}} \amp = 0 \amp\amp {\text{Ymax}} = 20
\end{align*}
and fill in the table of values below. (You can use the value feature on your calculator.)
| \(x\) |
\(-1\) |
\(-0.5\) |
\(0\) |
\(0.5\) |
\(1\) |
\(1.5\) |
\(2\) |
| \(f(x) \) |
\(\hphantom{0000} \) |
\(\hphantom{0000} \) |
\(\hphantom{0000} \) |
\(\hphantom{0000} \) |
\(\hphantom{0000} \) |
\(\hphantom{0000} \) |
\(\hphantom{0000} \) |
| \(p(x) \) |
\(\) |
\(\) |
\(\) |
\(\) |
\(\) |
\(\) |
\(\) |
The error in the approximation is the difference \(f (x) - p(x)\text{.}\) We can reduce the error by using a polynomial of higher degree. The \(n\)th degree polynomial for approximating \(e^x\) is
\begin{equation*}
P_n(x) = 1 + x + \frac{1}{2!}x^2+\frac{1}{3!}x^3+ \cdots +\frac{1}{n!}x^n
\end{equation*}
where \(n! = n(n - 1)(n - 2) \cdots 3 \cdot 2 \cdot 1\text{.}\) Graph \(f(x) \) and \(P_5(x)\) in the same window as in part (b). What is the error in approximating \(f(2)\) by \(P_5(2)\text{?}\)
Graph \(f(x) - P_5(x)\) in the same window as in part (b). What does the graph tell you about the error in approximating \(f(x)\) by \(P_5(x)\text{?}\)
70.
Graph the functions
\begin{equation*}
f(x) =\sin(x)~~~~ \text{and}~~~~p(x) = x - \frac{1}{6}x^3
\end{equation*}
in the standard window. (Check that your calculator is set in Radian mode.) For what values of \(x\) does it appear that \(p(x)\) would be a good approximation for \(f (x)\text{?}\)
-
Change the window settings to
\begin{align*}
{\text{Xmin}} \amp = -4.7 \amp\amp {\text{Xmax}} = 4.7\\
{\text{Ymin}} \amp = -2 \amp\amp {\text{Ymax}} = 2
\end{align*}
and fill in the table of values below. (You can use the value feature on your calculator.)
| \(x\) |
\(-1\) |
\(-0.5\) |
\(0\) |
\(0.5\) |
\(1\) |
\(1.5\) |
\(2\) |
| \(f(x) \) |
\(\hphantom{0000} \) |
\(\hphantom{0000} \) |
\(\hphantom{0000} \) |
\(\hphantom{0000} \) |
\(\hphantom{0000} \) |
\(\hphantom{0000} \) |
\(\hphantom{0000} \) |
| \(p(x) \) |
\(\) |
\(\) |
\(\) |
\(\) |
\(\) |
\(\) |
\(\) |
Two more polynomials for approximating \(f (x) = \sin(x)\) are
\begin{align*}
P_5(x) \amp = 1 -\frac{1}{3!}x^3+\frac{1}{5!}x^5\\
P_7(x) \amp = 1 -\frac{1}{3!}x^3+\frac{1}{5!}x^5 - +\frac{1}{7!}x^7
\end{align*}
(See
Problem 69 for the definition of
\(n!\text{.}\)) Graph
\(f(x) \) and
\(P_5(x)\) in the same window as in part (b). What is the error in approximating
\(f(2)\) by
\(P_5(2)\text{?}\)
Graph \(f(x) - P_5(x)\) in the same window as in part (b). What does the graph tell you about the error in approximating \(f(x)\) by \(P_5(x)\text{?}\)
