Section8.1Systems of Linear Equations in Two Variables
Systems of linear equations are some of the most useful and widely used mathematical tools for solving problems. Systems involving hundreds of variables and equations are not uncommon in applications such as scheduling airline flights or routing telephone calls.
A biologist wants to know the average weights of two species of birds in a wildlife preserve. She sets up a feeder whose platform is actually a scale and mounts a camera to monitor the feeder. She waits until the feeder is occupied only by members of the two species she is studying, doves and blue jays. Then she takes a picture, which records the number of each species on the scale and the total weight registered.
From her two best pictures, she obtains the following information. The total weight of three blue jays and six doves is \(48\) ounces, and the total weight of five blue jays and two doves is \(32\) ounces. Using these data, the biologist estimates the average weight of a blue jay and of a dove. She begins by assigning variables to the two unknown quantities:
\begin{align*}
\amp\text{Average weight of a blue jay:} ~~b\\
\amp\text{Average weight of a dove:} ~~d
\end{align*}
This pair of equations is an example of a linear system of two equations in two unknowns (or a \(2\times 2\) linear system, for short). A solution to the system is an ordered pair of numbers, \((b, d)\text{,}\) that satisfies both equations in the system.
Recall that every point on the graph of an equation represents a solution to that equation. A solution to both equations corresponds to a point on both graphs. Therefore, a solution to the system is a point where the two graphs intersect.
From the figure above, it appears that the intersection point is \((4, 6)\text{,}\) so we expect that the values \(b=\alert{4}\) and \(d=\blert{6}\) form the solution to the system. We can check by verifying that these values satisfy both equations in the system.
and enter the two equations. We can see in the figure that the two lines intersect in the third quadrant. We use the TRACE key to find the coordinates of the intersection point, \((-2,-3)\text{.}\) The solution to the system is \(x=-2\text{,}\)\(y=-3\text{.}\)
The values we obtain from a calculator may be only approximations, so it is a good idea to check the solution algebraically. In ExampleΒ 8.3, we find that both equations are true when we substitute \(x = \alert{-2}\) and \(y=\blert{-3}\text{.}\)
Technology8.8Using the Intersect Feature to Solve a System.
Graphing utilities have an intersect feature to find the coordinates of the intersection of two graphs. In the next Example we demonstrate the intersect feature of the calculator. (There is also an Example in Appendix C Using a Geogebra Calculator app that shows the intersect feature in Geogebra.)
We Trace along the first line to find the intersection point. It appears to be at \(x=4.468051\text{,}\)\(y =-2.734195\text{,}\) as shown in figure (a). However, if we press the up or down arrow to read the coordinates off the second line, we see that for the same \(x\)-coordinate we obtain a different \(y\)-coordinate, as in figure (b).
The different \(y\)-coordinates indicate that we have not found an intersection point, although we are close. The intersect feature can give us a better estimate, \(x = 4.36\text{,}\)\(y = -2.85\text{.}\)
In previous algebra courses, you learned two algebraic techniques for solving \(2\times 2\) linear systems: substitution and elimination. See Algebra Skills Refresher SectionΒ A.5 if you would like to review these techniques.
Rani kayaks downstream for \(45\) minutes and travels a distance of \(6000\) meters. On the return journey upstream, she covers only \(4800\) meters in \(45\) minutes. How fast is the current in the river, and how fast would Rani kayak in still water? (Give your answers in meters per minute.)
First, we organize the information into a table. When Rani travels downstream, the current in the river helps her, so her effective speed is \(r+s\text{.}\) When she travels upstream she is fighting the current, so her speed is actually \(r-s\text{.}\)
Using the formula \(~~\text{Rate} \times \text{Time} = \text{Distance}~~\text{,}\) we write one equation describing Raniβs journey downstream, and a second equation for the journey upstream.
The speed of the current is \(\dfrac{40}{3}\text{,}\) or \(13\dfrac{1}{3} \) meters per minute, and Raniβs speed in still water is \(120\) meters per minute.
It took Leon \(7\) hours to fly the same distance that Marlene drove in \(21\) hours. Leon flies \(120\) miles per hour faster than Marlene drives. At what speed did each travel?
Because two straight lines do not always intersect at a single point, a \(2\times 2\) system of linear equations does not always have a unique solution. In fact, there are three possibilities, as illustrated below.
We use the calculator to graph both equations on the same axes, as shown below. First, we rewrite the second equation in slope-intercept form by solving for \(y\text{.}\)
\begin{align*}
2x + 2y \amp = 3\amp\amp \blert{\text{Substract } 2x \text{ from both sides.}}\\
2y \amp = -2x + 3\amp\amp \blert{\text{Divide both sides by 2.}}\\
y \amp = -x + 1.5
\end{align*}
The lines do not intersect within the viewing window; they appear to be parallel. If we look again at the equations of the lines, we recognize that both have slope \(-1\) but different \(y\)-intercepts, so they are parallel. Because parallel lines never meet, there is no solution to the system.
A system with no solutions, such as the system in ExampleΒ 8.14, is called inconsistent. A \(2\times 2\) system of linear equations is inconsistent when the two equations correspond to parallel lines. This situation occurs when the lines have the same slope but different \(y\)-intercepts.
A linear system with infinitely many solutions is called dependent. A \(2\times 2\) system is dependent when the two equations actually describe the same line. This situation occurs when the two lines have the same slope and the same \(y\)-intercept.
The two equations are actually different forms of the same equation. Because they are equivalent, they share the same line as a graph, as shown at right. Every point on the first line is also a point on the second line, so every solution to the first equation is also a solution of the second equation. Thus, the system has infinitely many solutions.
Dependent system. All the solutions of one equation are also solutions to the second equation and hence are solutions of the system. The graphs of the two equations are the same line. A dependent system has infinitely many solutions.
It is not always easy to tell from the equations themselves whether there is one solution, no solution, or infinitely many solutions. However, the method of elimination will reveal which of the three cases applies.
This equation has no solutions. The system is inconsistent. (Notice that both lines have slope \(\dfrac{-2}{3}\text{,}\) but they have different \(y\)-intercepts, so their graphs are parallel.)
A cup of rolled oats provides 11 grams of protein. A cup of rolled wheat flakes provides 8.5 grams of protein. Francine wants to combine oats and wheat to make a cereal with 10 grams of protein per cup. How much of each grain will she need in one cup of her mixture?
We will solve the system by graphing. First, solve each equation for \(y\) in terms of \(x\) to get
\begin{align*}
y \amp= -x + 1\\
y \amp = (10 - 11x)/8.5
\end{align*}
Although we could simplify the second equation, the calculator can graph both equations as they are. We know that \(x\) and \(y\) represent fractions of one cup, so we set the window (as shown below) with
Etienne plans to open a coffee house, and he has $\(7520\) to spend on furniture. A table costs $\(460\text{,}\) and a chair costs $\(120\text{.}\) Etienne will buy four chairs for each table. How many tables can he buy?
Let \(x\) represent the number of tables Etienne should buy, and let \(y\) represent the number of chairs. Write an equation about the cost of the furniture.
Being unable to read exact coordinates from a graph is not always a disadvantage. In many situations, fractional values of the unknowns are not acceptable.

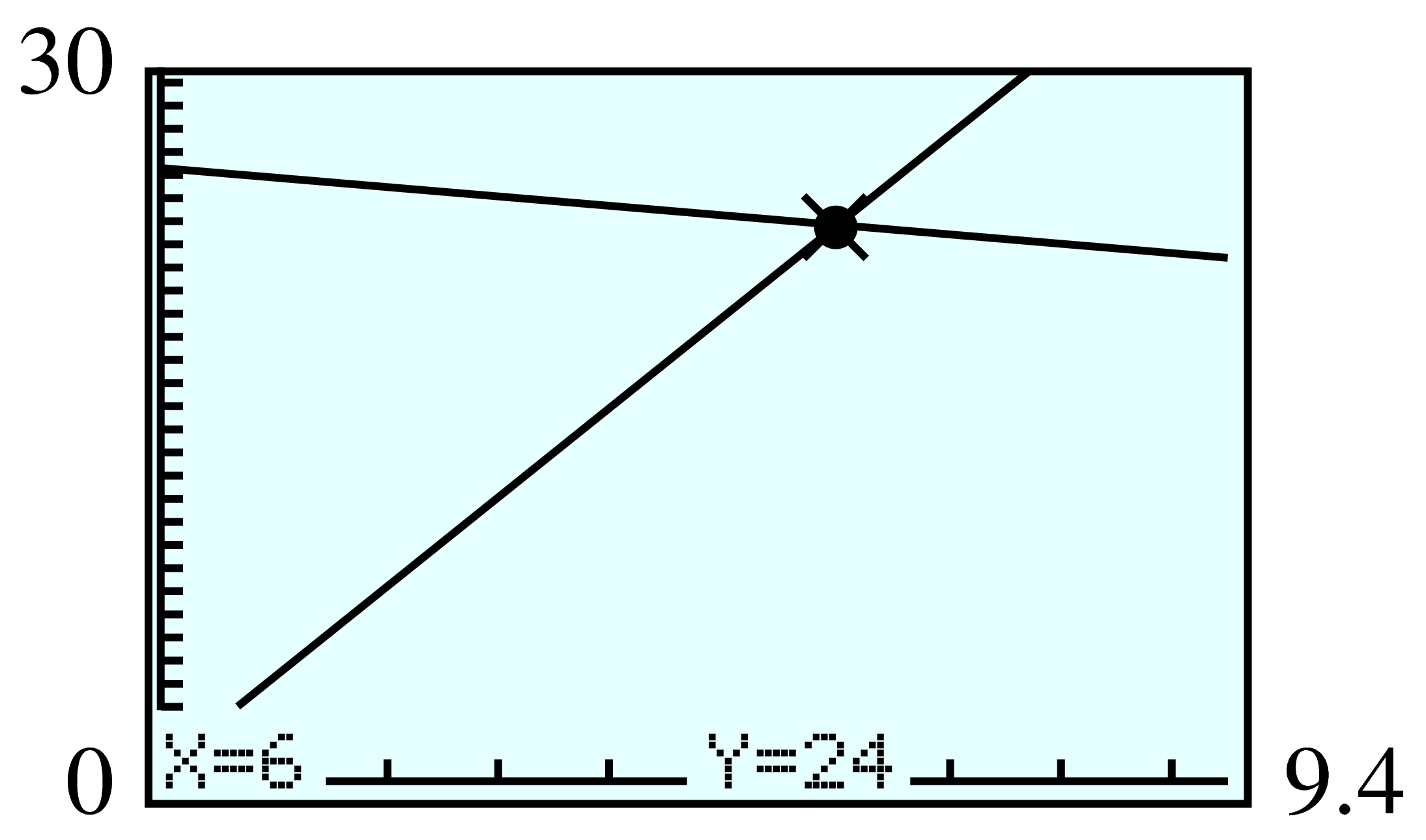

The mathematics department has $\(40,000\) to set up a new computer lab. The department will need one printer for every four terminals it purchases. If a printer costs $\(560\) and a terminal costs $\(1520\text{,}\) how many of each should the department buy?
on the same set of axes. The second graph is not visible in the standard graphing window, but with a little experimentation we can find an appropriate window setting. The WINDOW values used for the figure below are
The exact solution to the system is \(\left(\dfrac{500}{83},\dfrac{2000}{83}\right)\text{.}\) But this solution is not of practical use, since the math department cannot purchase fractions of printers or terminals. The department can purchase \(6\) printers and \(24\) terminals (with some money left over).
The manager for Books for Cooks plans to spend $300 stocking a new diet cookbook. The paperback version costs her $5, and the hardback costs $10. She finds that she will sell three times as many paperbacks as hardbacks. How many of each should she buy?
The owner of a retail business must try to balance the demand for his product from consumers with the supply he can obtain from manufacturers. Supply and demand both vary with the price of the product: Consumers usually buy fewer items if the price increases, but manufacturers will be willing to supply more units of the product if its price increases.
The demand function gives the number of units of the product that consumers will buy in terms of the price per unit. The supply function gives the number of units that the producer will supply in terms of the price per unit. The price at which the supply and demand are equal is called the equilibrium price. This is the price at which the consumer and the producer agree to do business.
A woolens mill can produce \(400x\) yards of fine suit fabric if it can charge \(x\) dollars per yard. The millβs clients in the garment industry will buy \(6000 - 100x\) yards of wool fabric at a price of \(x\) dollars per yard. Find the equilibrium price and the amount of fabric that will change hands at that price.
Sanaz can afford to produce \(35x\) pairs of hand-painted sunglasses if she can sell them at \(x\) dollars per pair, and the market will buy \(1700 - 15x\) at \(x\) dollars a pair.
In Problems 9β14, graph each system by hand, using either the intercept method or the slope-intercept method. Identify the system as dependent, inconsistent, or consistent and independent.
Use linear combinations to identify each system in Problems 15β20 as dependent, inconsistent, or consistent and independent. (See Algebra Skills Refresher SectionΒ A.5 to review linear combinations.)
Dash Phone Company charges a monthly fee of $\(10\text{,}\) plus $\(0.09\) per minute for long distance calls. Friendly Phone Company charges $\(15\) per month, plus $\(0.05\) per minute for long-distance calls.
Write an equation for Dash Phone Companyβs monthly bill if you talk long distance for \(x\) minutes.
The Olympus Health Club charges an initial fee of $\(230\) and $\(13\) monthly dues. The Valhalla Health Spa charges $\(140\) initially and $\(16\) per month.
Write an equation for the cost of belonging to Olympus Health Club for \(x\) months.
Yasuo can afford to produce \(50x\) bushels of wheat if he can sell them at \(x\) cents per bushel, and the market will buy \(2100 - 20x\) bushels at \(x\) cents per bushel.
Melβs Pool Service can clean \(1.5x\) pools per week if it charges \(x\) dollars per pool, and the public will book \(120 - 2.5x\) pool cleanings at \(x\) dollars per pool.
The Aquarius jewelry company determines that each production run to manufacture a pendant involves an initial set-up cost of $\(200\) and $\(4\) for each pendant produced. The pendants sell for $\(12\) each.
Express the cost \(C\) of production in terms of the number \(x\) of pendants produced.
Graph the revenue and cost on the same set of axes. How many pendants must be sold for the Aquarius company to break even on a particular production run?
The Bread Alone Bakery has a daily overhead of $\(90\text{.}\) It costs $\(0.60\) to bake each loaf of bread, and the bread sells for $\(1.50\) per loaf.
Express the cost \(C\) in terms of the number \(x\) of loaves baked.
The admissions at a Bengalsβ baseball game was \($7.50\) for adults and \($4.25\) for students. The ticket office took in \($465.50\) for \(82\) paid admissions. How many adults and how many students attended the game?
There were \(42\) passengers on an airplane flight for which first-class fare was \($400\) and tourist fare was \($320\text{.}\) If the revenue for the flight totaled \($14,400\text{,}\) how many first-class and how many tourist passengers paid for the flight?
Earthquakes simultaneously send out two types of waves, called P waves and S waves, but the two types travel at different speeds. A seismograph records arrival of P waves from an earthquake, and ninety seconds later the seismograph receives S waves from the same earthquake. The P waves travel at \(5.4\) miles per second, and S waves at \(3\) miles per second. How far is the seismograph from the earthquake?
Let \(x\) represent the time in seconds for the P to arrive at the seismograph, and \(y\) the distance in miles between the earthquake and seismograph. Fill in the table.
Thelma and Louise start together and drive in the same direction, Thelma driving twice as fast as Louise. At the end of \(3\) hours, they are \(96\) miles apart. How fast is each traveling?
Choose variables for the unknown quantities, and fill in the table.
In Problems 31β34, solve each system of equations by graphing. Find the intercepts of each graph to help you choose a suitable window, then use the intersect feature to locate the solution.
