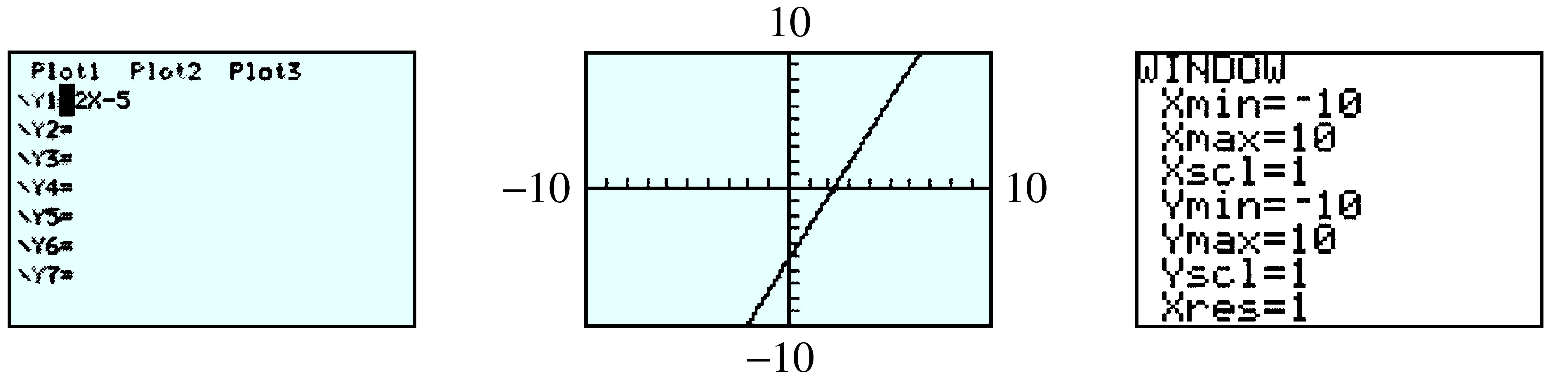

We can graph equations written in the form \(y = \) (expression in x). The graphing keys are located on the top row of the keypad. There are two steps to graphing an equation:

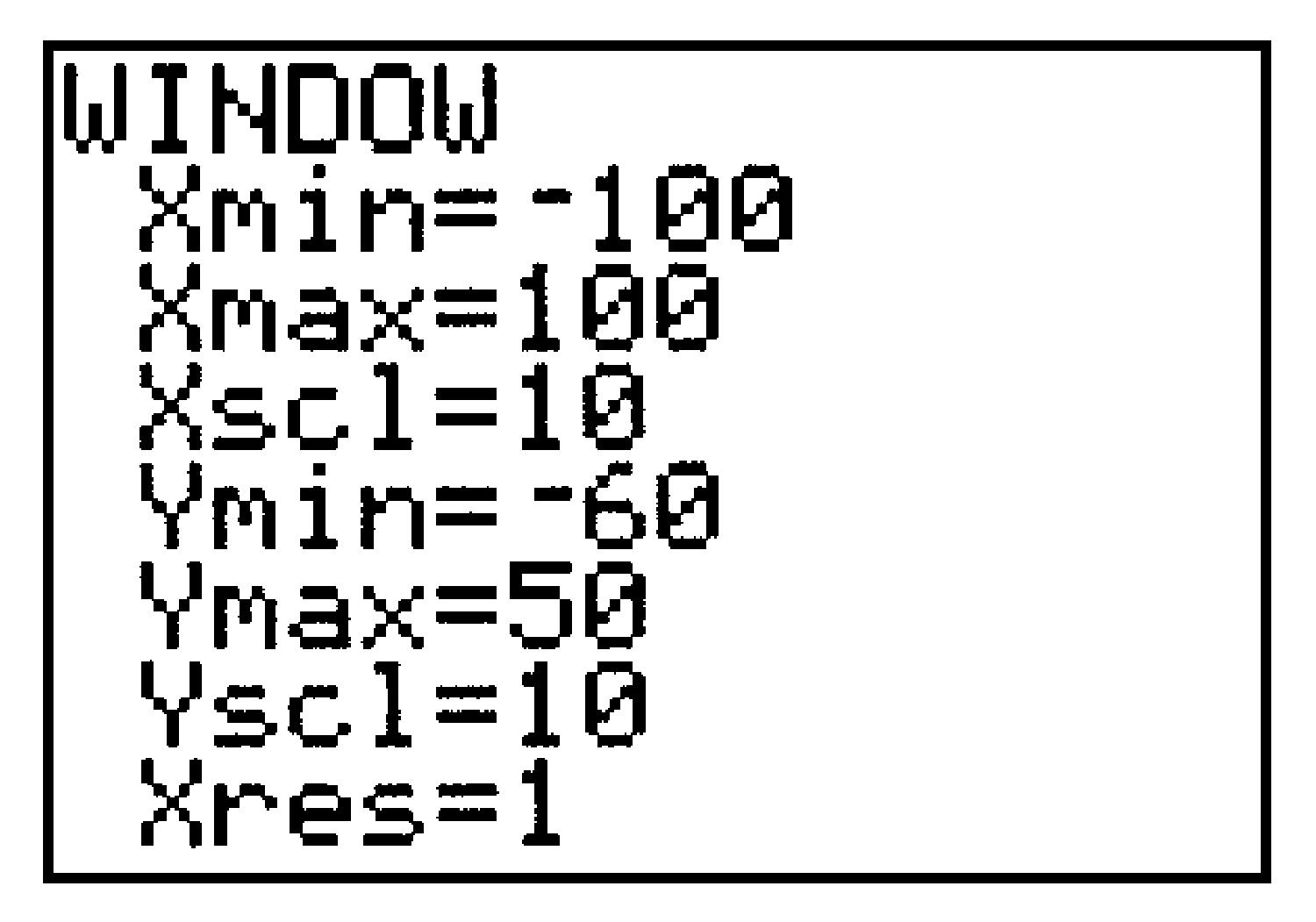

You can press 2ndWINDOW to see the settings for the standard window. \(Xscl = 1\) means that the tick marks on the \(x\)-axis are spaced \(1\) unit apart.

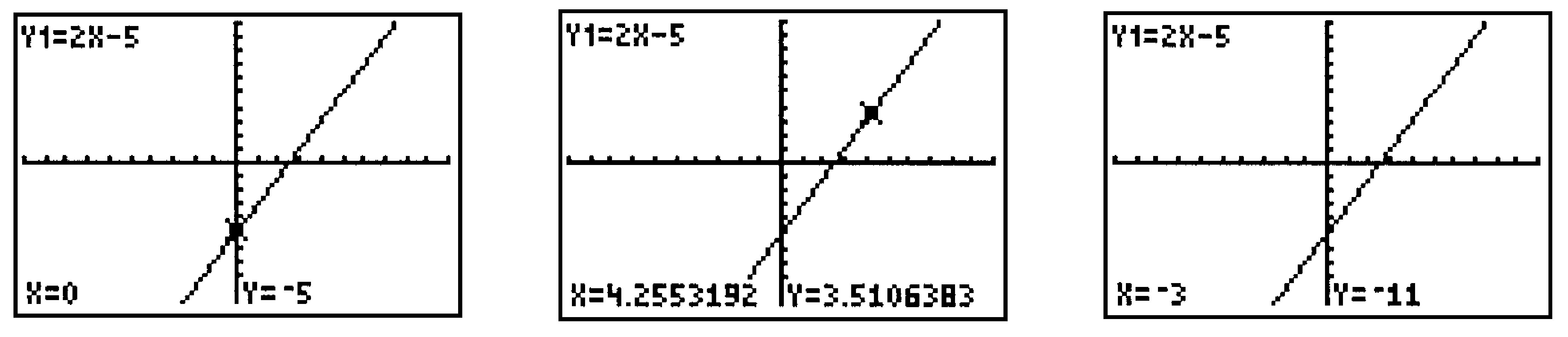

The calculator can display the coordinates of selected points on the graph. Press the TRACE key to see a "bug" blinking on the graph. The coordinates of the bug are displayed at the bottom of the screen. Use the left and right arrow keys to move the bug along the graph, as shown in FigureΒ B.33. Note that the Trace feature does not show every point on the graph!
You can enter more than one graph at a time. Press β to enter a second equation at \(Y_2 =\text{,}\) at \(Y_3 =\text{,}\) and so on. When Tracing, press the β and β keys to move from one graph to another.
To turn off a graph without deleting its equation, press and move the cursor over the \(=\) sign in the equation. Press ENTER to deactivate that equation. (When you move the cursor away, the \(=\) sign is no longer highlighted.) To reactivate the equation, move the cursor back over the \(=\) sign and press ENTER again.

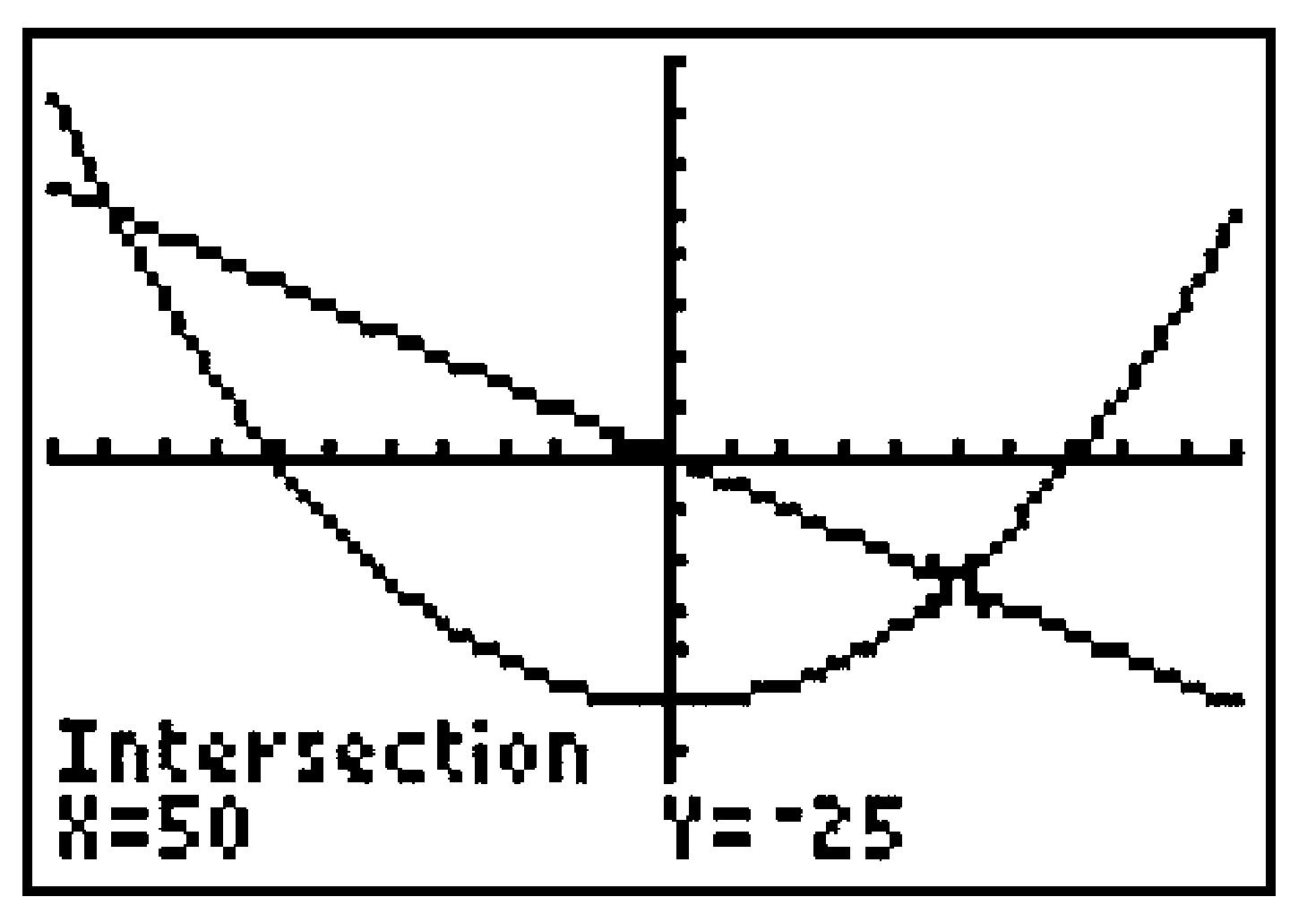

Respond to each of the calculatorβs questions, First curve?, Second curve?, and Guess? by pressing ENTER. The coordinates of the intersection point are then displayed at the bottom of the screen.
The ZDecimal (Zoom Decimal) window, accessed by pressing ZOOM\(4\text{,}\) shows \(x\)-values from \(-4.7\) to \(4.7\) only, but the Trace feature shows "nice" \(x\)-values in increments of \(0.1\text{.}\)
The ZInteger (Zoom Integer) window shows nice \(x\)-values in increments of \(1\) unit. Access the ZInteger window as follows: Press ZOOM\(8\text{,}\) move the bug with the arrow keys to the center of your new window, and press ENTER.
The ZSquare window, accessed by pressing ZOOM\(5\text{,}\) makes the tick marks on both axes have the same size. In this window, squares look like squares, circles look like circles, and all angles appear true.
"Friendly" Windows: If the difference between Xmin and Xmax is a multiple of \(94\text{,}\) the Trace feature gives nice values for \(x\text{.}\) A useful example of a friendly window is \(Xmin=-9.4\text{,}\)\(Xmax= 9.4\text{.}\)
If the graph is not visible, you may need to adjust your window. Or, the equation may not be activated. Press Y= and check to see if the \(=\)sign is highlighted.
If you get a range error, ERR: WINDOW RANGE, quit the message and press WINDOW. Alter the window settings so that Xmin is smaller than Xmax and so that Ymin is smaller than Ymax.
If you press and get an unfamiliar window, or if the axes are not visible in the ZStandard window, you may need to return the Mode or Format menus to their default settings. See Troubleshooting in SectionΒ B.1.
If the \(x\)-axis or \(y\)-axis is too thick, the tick marks are too close together. Press WINDOW and make Xscl or Yscl larger. Set \(Xscl=0\) or \(Yscl =0\) to remove the tick marks.
If you get ERR: NO SIGN CHNG when using the intersect feature, the calculator did not find any intersection point within the current window. Alter the window settings so that the two curves meet within the window. If the two curves are tangent, the calculator may simply fail to find the point of intersection.
